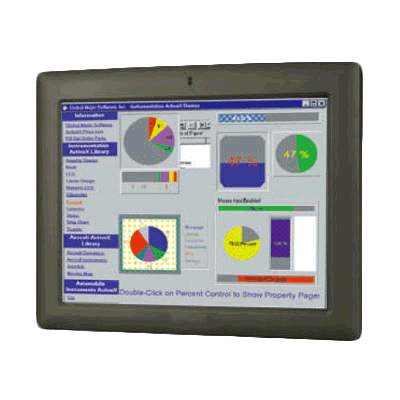

Slim Panel PC – 8″

(SP-0800-72)

Zoom8-slim-panel-pc-1336339616-png

Call for more info

  • Description
  • Product Documentation
  • Product Specifications

Description

  • All-in-One Touch Computer
  • Windows 7 Professional included
  • Thin, Lightweight and Low Power Consumption
  • 300K pixel Camera and Digital Microphone
  • 1 Year Limited Warranty (2 or 3 Year Available)

Product Documentation

  • PDF Spec Sheet

Product Specifications

LCD Size 8"
Max Resolution 800 x 600
Brightness (cd/㎡) 250
Contrast Ratio 400: 1
LCD Color 262K
Pixel Pitch (mm) 0.2025 (H) x 0.2025 (V)
Viewing Angle (H-V) 140º / 130º
Backlight MTBF 30000 hrs (LED backlight)
SBC Model AFLMB-945GSE-N270-R10
CPU Intel® Atom™ Processor N270 (512K Cache, 1.60 GHz, 533 MHz FSB)
Chipset Intel® 945GSE + ICH7M
RAM Supports one 400MHz or 533MHz DDRII SO-DIMM(2GB Max.)
I/O Ports and Switches 1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x External SATA
1 x Audio Port
1 x Power Jack
SSD CF TypeII
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 1.5W + 1.5W (internal speaker)
Camera 300K pixel with Digital Microphone
Wireless 1 x Wireless LAN 802.11 b/g/n Module (internal PCIe Mini card interface)
Touch Screen 5-wire resistive type (touch controller IC is on board)
Construction Front Panel ABS + PC Plastic front frame
Mounting Panel, Wall, Rack, Stand and Arm,VESA 75mm x 75mm
LED Function 1 x Power ON/OFF LED on Front Panel
Front Panel Color Gray 7539U
Dimension (WxHxD) (mm) 234 x 177 x 43
Operating Temperature (°C) (Ambient with air flow) -10°C ~50°C
Storage Temperature (℃) -20°C ~60°C
Weight 0.8 Kg
IP Level(front panel) IP64
Safety CE / FCC
Power Adapter P/N: 63000-FSP036RAB608-RS
36W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement 12VDC
Power Consumption 25W
Category Touch Panel PCs
