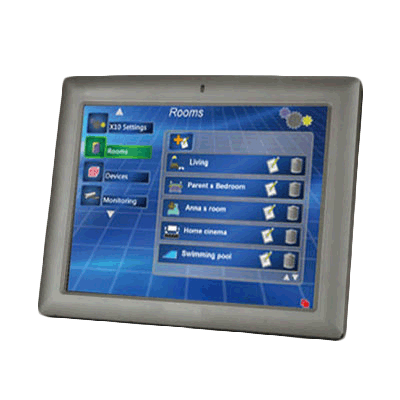

Slim Panel PC – 10″

(SP-1000-72)

Zoom10-slim-panel-pc-1336339501-png

Call for more info

  • Description
  • Product Specifications
  • Product Documentation

Description

  • All-in-One Touch Computer
  • Windows 7 Professional included
  • Thin, Lightweight and Low Power Consumption
  • Desktop Stand (Optional) or VESA Mountable
  • 802.11b/g wireless
  • 1 Year Limited Warranty (2 or 3 Year Available)

Product Specifications

LCD Size 10.4"
Max Resolution 800 * 600
Brightness (cd/㎡) 400
Contrast Ratio 700:1
LCD Color 262K
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 160° / 140°
Backlight MTBF 50000 hrs
SBC Model AFLMB-945GSE-N270-R10
CPU Intel® Atom™ process N270 1.6GHz CPU
Chipset Intel 945GSE / ICH7M
RAM Supports one 400MHz or 533MHz DDRII SO-DIM (2GB Max.)
I/O Ports and Switches 1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x External SATA
1 x Audio Port
1 x Power Jack
SSD CF Type II
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 1.5W + 1.5W (internal speaker)
Wireless 1 x Wireless LAN 802.11 b/g/n Module (internal PCIe Mini card interface)
Touch Screen 5-wire resistive type (touch controller IC is on board)
Optional GPRS Module (support GSM 850, EGSM900, DCS 1800 & PCS, 1900) 1 x HSUPA Mobile Module(internal USB Interface)
Construction Material ABS + PC Plastic front frame
Mounting Panel, Wall, Rack, Stand or Arm VESA 75mm x 75mm / 100mm x 100mm
LED Function 1 x Power ON/OFF LED on front panel
Front Panel Color Gray 7539U
Dimension (WxHxD) (mm) 276 x 222 x 51
Operating Temperature (°C) (Ambient with air flow) -10°C~50°C
Storage Temperature (℃) -20°C~60°C
Weight 1.4 Kg
IP Level(front panel) IP64
Power Adapter P/N: 63000-FSP036RAB608-RS
36W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement 12VDC
Power Consumption 28W

Product Documentation

  • PDF Spec Sheet
Category Touch Panel PCs
