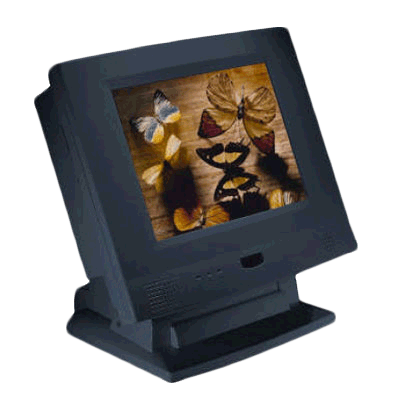

Panel PC – 12″

(MP-1200-69)

Zoom12-panel-pc-1336344615-png

Call for more info

  • Description
  • Product Documentation
  • Product Specifications

Description

  • Fully Customizable All-in-One Touch Computer
  • Powerful, Durable & Compact Design
  • Windows Pro Included
  • Use Base Stand or VESA Mount
  • 1 Year Limited Warranty (2 or 3 Year avail.)

Product Documentation

  • PDF Spec Sheet
  • 12" Panel PC (MP-1200 Model) Manual
  • Technical Drawing

Product Specifications

SYSTEM
CPU Intel® Dual Core/Core Duo; up to 2.4 GHz
Operating System Windows® XP Professional
Windows 7 Pro (Coming Soon)
L2 Cache Built-In to CPU
Chipset Intel® 945GV/ICH7
System Memory 2 slots x 240 pin DDR II up to 4GB
Hard Drive SATA II/300 to 320 GB
Optical Drive Slim line CD-ROM, DVD/CD-RW Combo and DVD+RW (optional)ine FDD x 1
Display 12.1” TFT LCD, 800 x 600 Native
Touch Technology 12.1” 5-Wire Resistive
2nd Display DB15, VGA Port (Supports 1920x1200 Resolution)
Standard I/0 Serial ports x4 COM 1,2 and 4 (COM 2 is selectable for RS-232/422/485)Parellel port x 1
External ATA 100/66 IDE interface x 1
+5V/+12V DC Out x 1
PS/2 Keyboard Interface x 1
PS/2 Mouse Interface x 1
USB 2.0 Interface x 2
VGA Interface x 1 (Supports Extended Desktop)
Brightness VR x 1
Audio Speaker x 2
Line-out, line-in and microphone
Network 10/100 Base-T PnP Ethernet w/ RJ45 Supports Wake-on-LAN
Expansion Slots PCI x 2 or PCI x 1 + ISA x 1
Front Bezel LED indicators for HDD, LAN. POWER
Power Supply ATX 250W, 100~240V/5~3A @ 50~60Hz
Bays Slim line CD-ROM or equivalent x 1 Slim line FDD x 1
MECHANICAL
Construction Inside: Heavy-gauge steel
Outside: Fire resilient plastic
Dimension (WxHxD) 14.49 in. x 12.64 in. x 4.59 in.
368.0 mm x 321.0 mm x 116.5 mm
VESA Mounting 75mm x 75mm
Stand 45º ~ 90º Free Standing
Cable Management Design
Holes for fixed mounting
Category Touch Panel PCs
